Mooring PR116 : CarICOOS Data Buoy A


Latitude: 17° 52.20´N
Longitude: 66° 32.22´W
Location Description: South of Caja de Muertos Island
Deployed: Jul 31 2024
Coast Guard Light List Letter: A
Coast Guard Light List Number 31941
Water Depth: 17 meters (56 feet)
Watch Circle Radius: 60 meters (197 feet)
Last Cell Phone Transmission: Feb 03, 10 AM AST
Last GOES Transmission: Nov 13, 04 PM AST
Latest Event:
Jul 31, 07 AM AST
deployed by F/V Blackbeard

Specialized Plots:
Temperature, Salinity, Density: Temperature, Salinity, Density (Deployment Only):

Text Reports: Surface, Ocean, Currents OR Data Download (All data for this location)

Sensor Information (this deployment only)

Latest Conditions:

Click on the graph icons below to see time series plots of the listed variables. The latest conditions are in local time but all plots are in GMT(Summer EDT is 4 hours behind GMT; Winter EST is 5 hours behind GMT; Atlantic AST is always 4 hours behind GMT).

We follow the convention that depth is measure positive "down". That's why parameters like wind speed have negative depths attached to them! The latest eastward and northward subsurface currents are displayed at a subset of available depths; no plots are presently available for current velocity vectors below 2m. Click here for additional Information.

Variable (measurement depth in meters) Last
Observation		 Last
Update
(AST)		 Most
Recent Data
Plot		 Full
Deployment
Plot		 Full
Historical
Plot		 Make
My
Own
Significant Wave Height (0m)0.6 meters (1.8 ft) Feb 03 10:00 AM

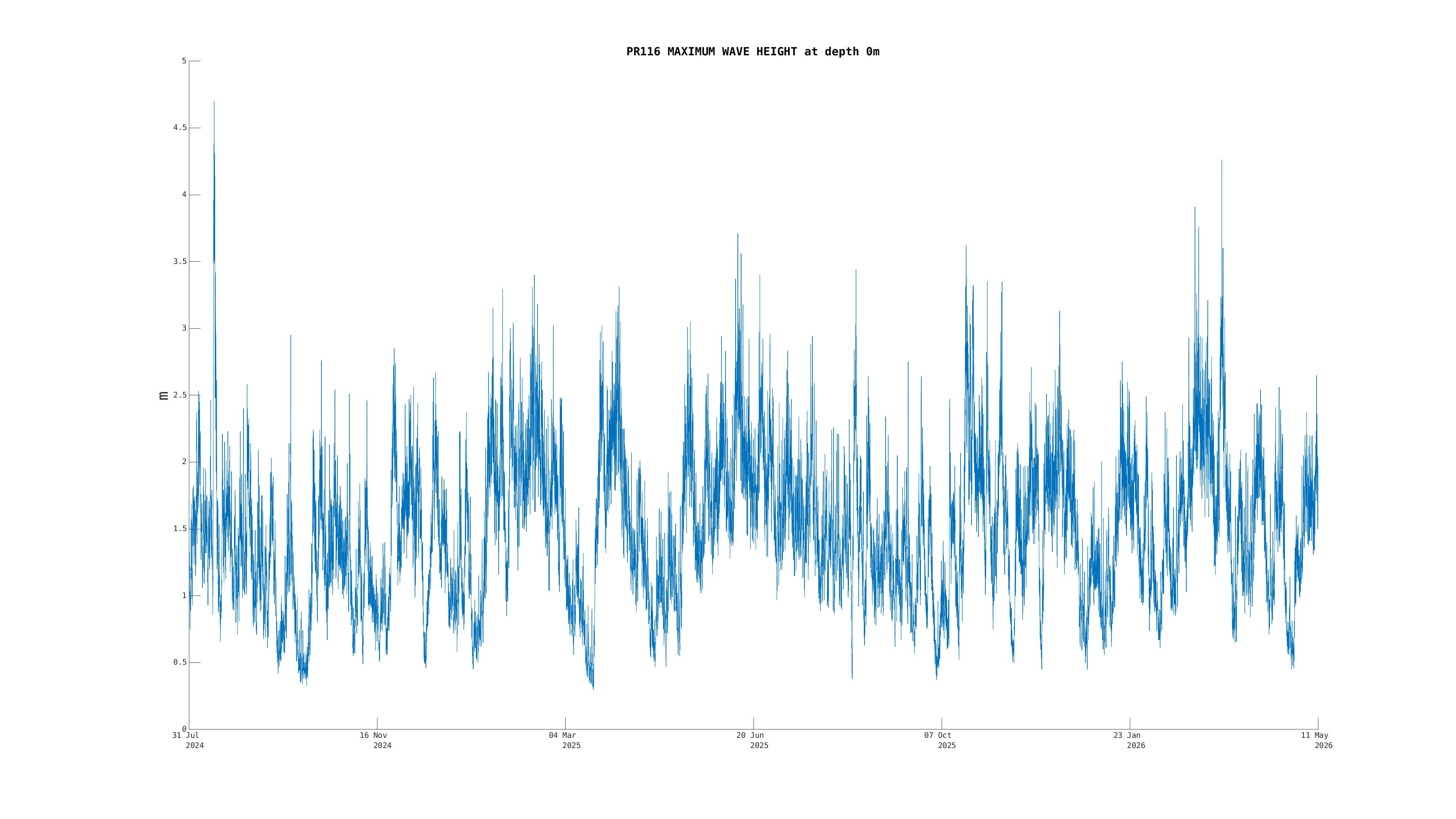

Maximum Wave Height (0m)1.0 meters (3.1 ft) Feb 03 10:00 AM

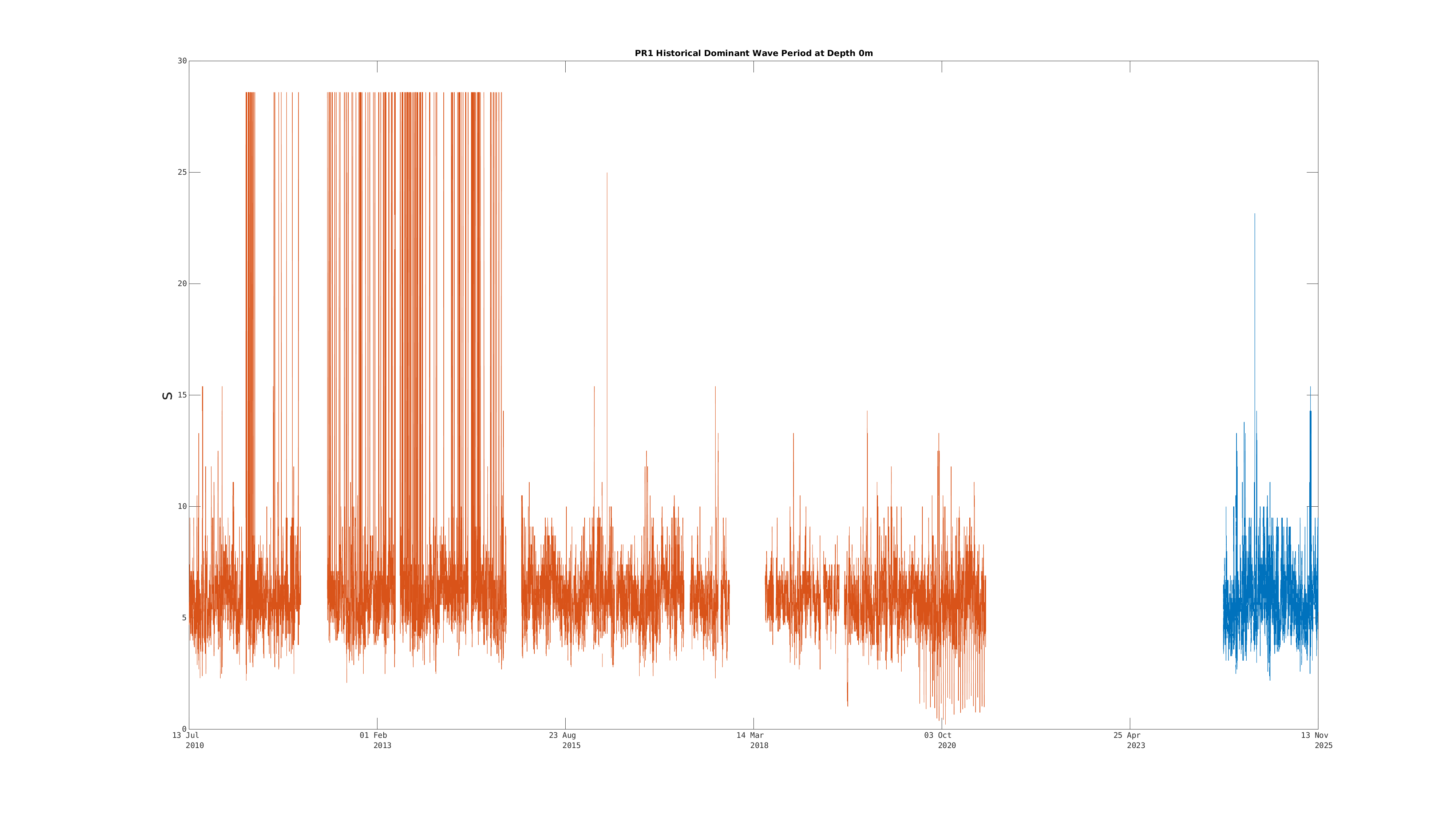

Dominant Wave Period (0m)7.7 seconds Feb 03 10:00 AM

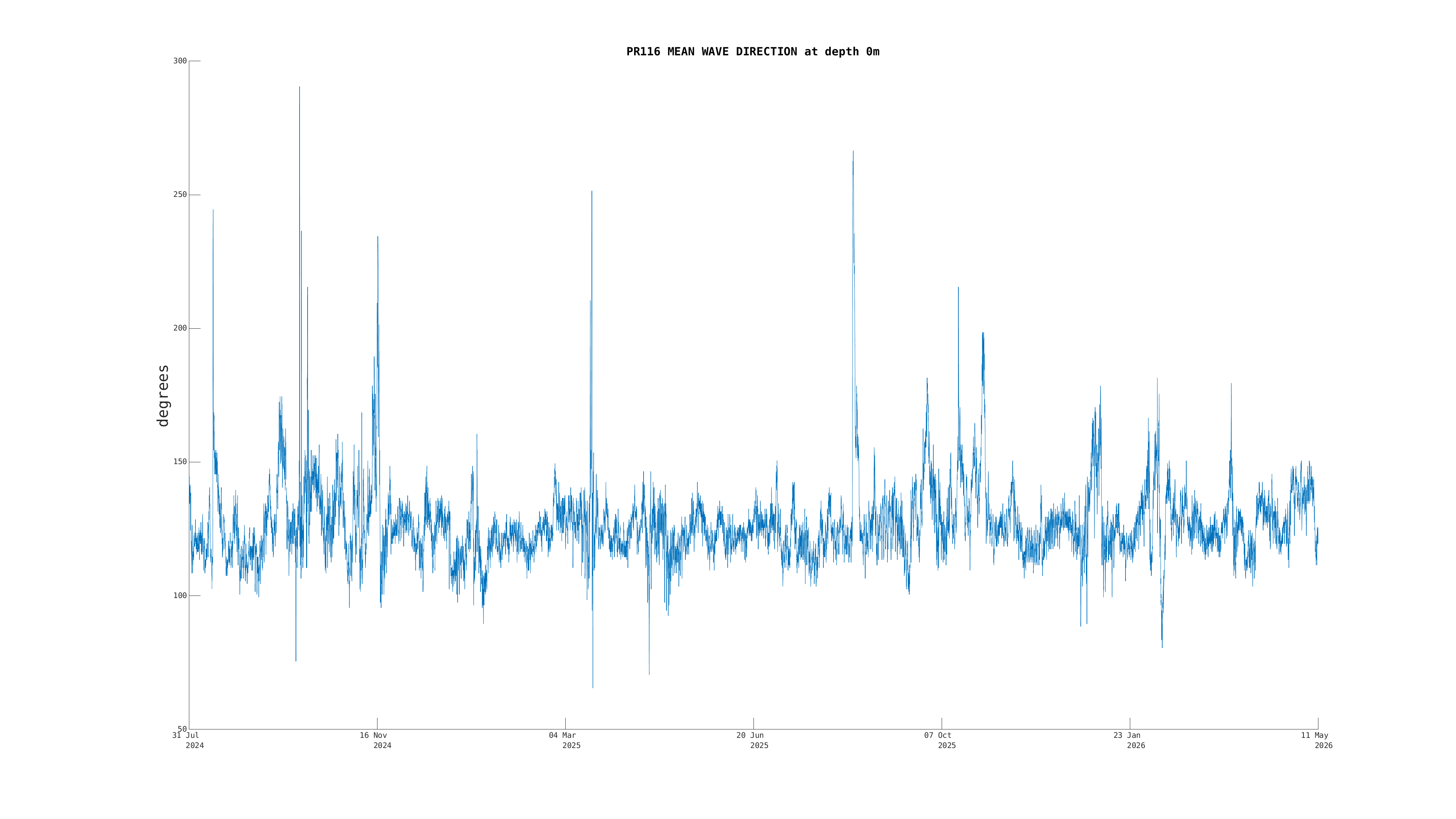

Mean Wave Direction (0m)124.5 degrees Feb 03 10:00 AM
Mean Wave Direction Spread (0m)43.0 degrees Feb 03 10:00 AM
Significant Wave Height (alt) (0m)0.7 meters (2.2 ft) Feb 03 10:00 AM
Dominant Wave Period (alt) (0m)8.0 seconds Feb 03 10:00 AM
Significant Wave Height (test) (0m)0.5 meters (1.8 ft) Feb 03 10:00 AM
Dominant Wave Period (test) (0m)5.6 seconds Feb 03 10:00 AM
Mean Wave Direction (test) (0m)146.2 degrees Feb 03 10:00 AM

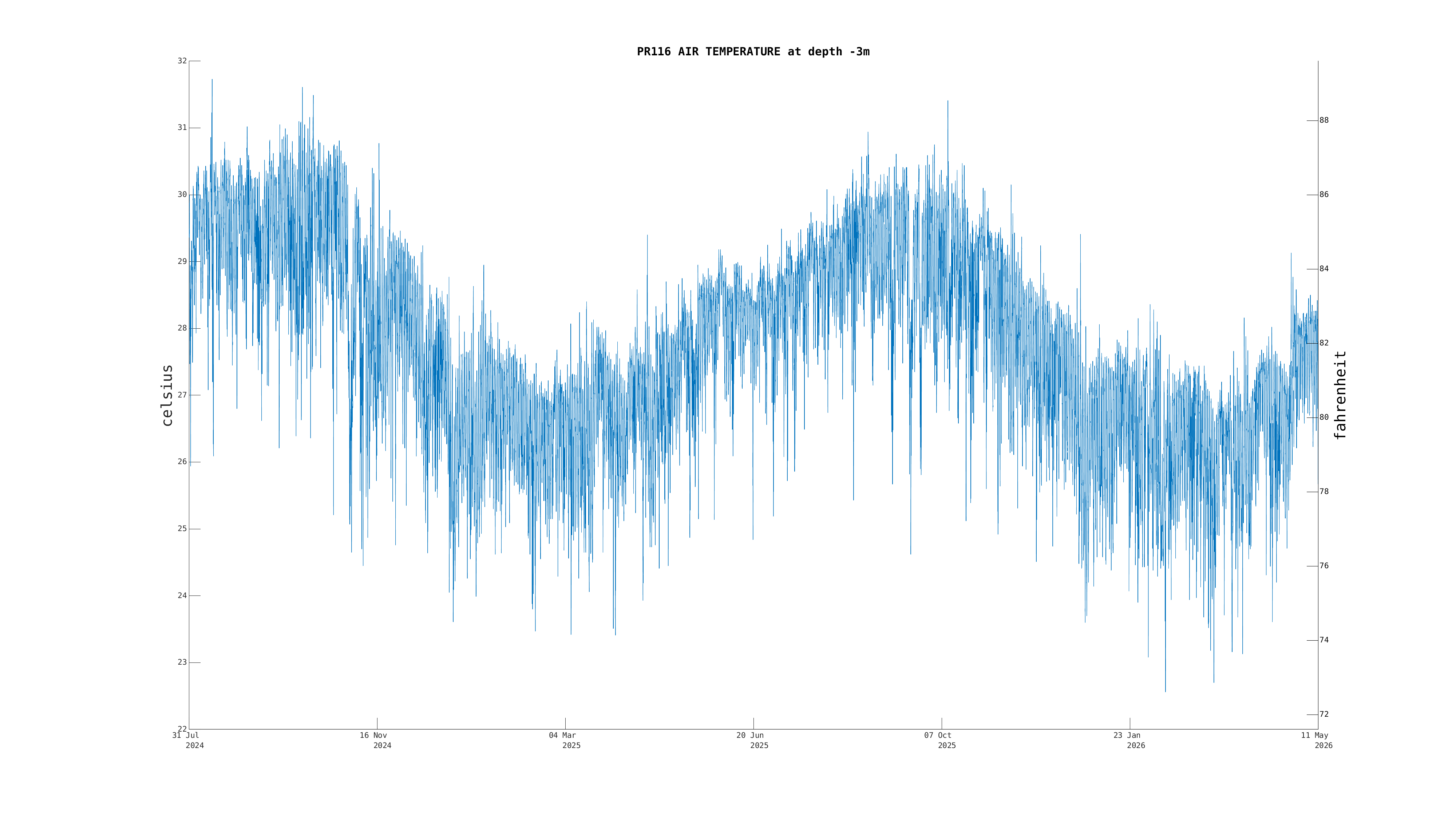

Air Temperature (-3m)26.5 C (79.6 F) Feb 03 10:00 AM
Barometric Pressure (-3m)1018.4 millibars Feb 03 10:00 AM

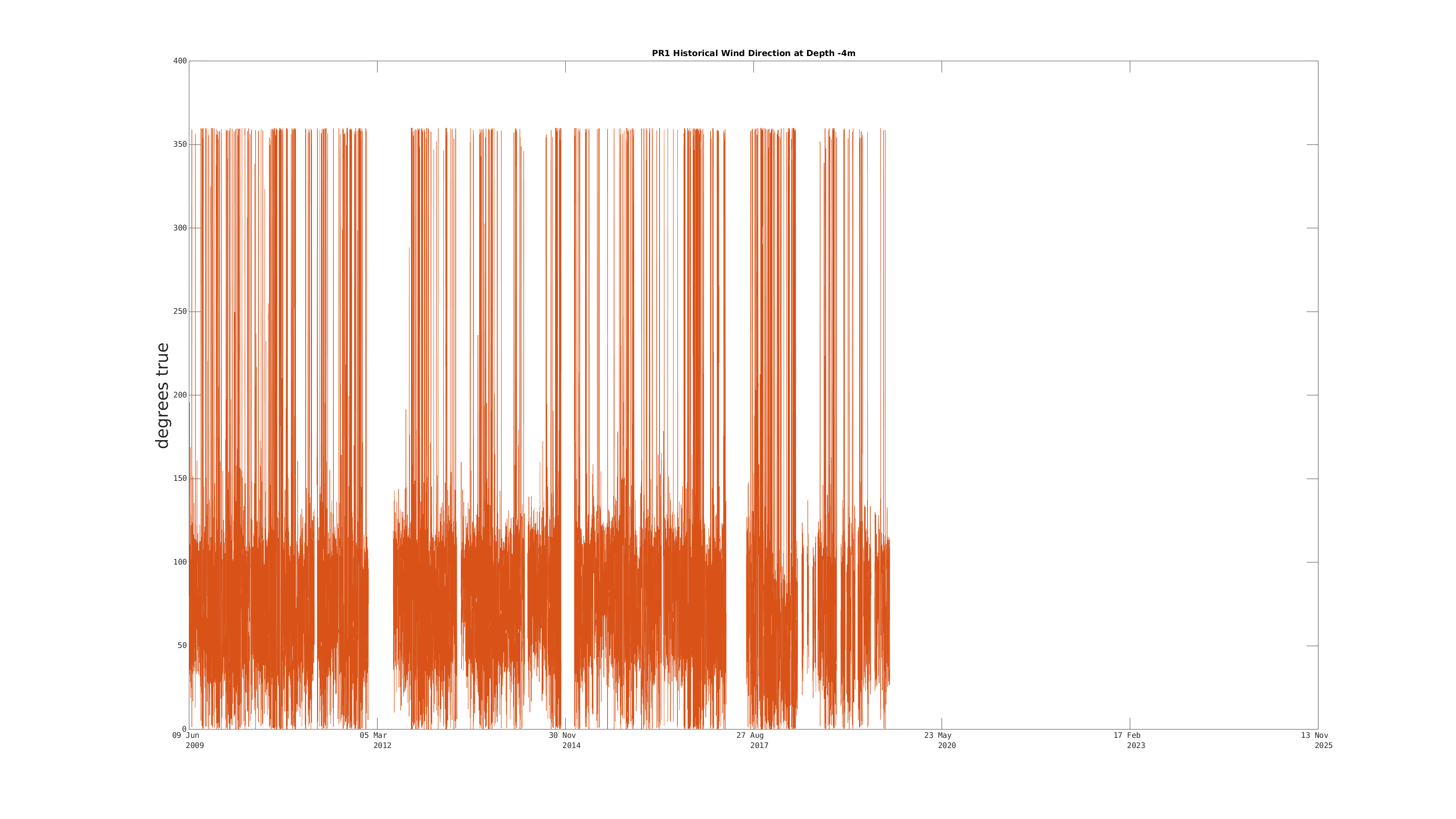

Wind Direction (-4m)NE Feb 03 10:00 AM

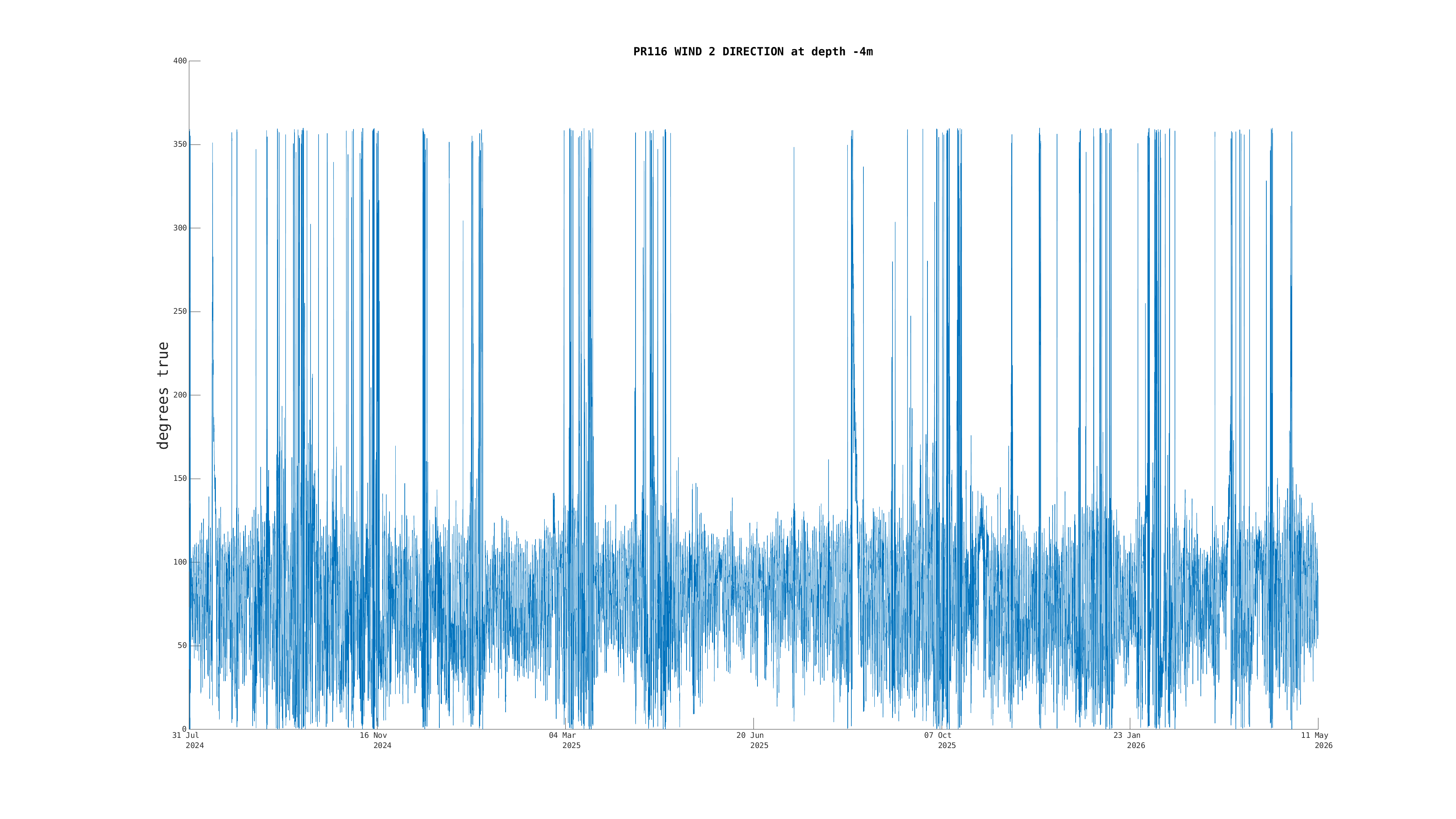

Wind 2 Direction [Primary] (-4m)NE Feb 03 10:00 AM

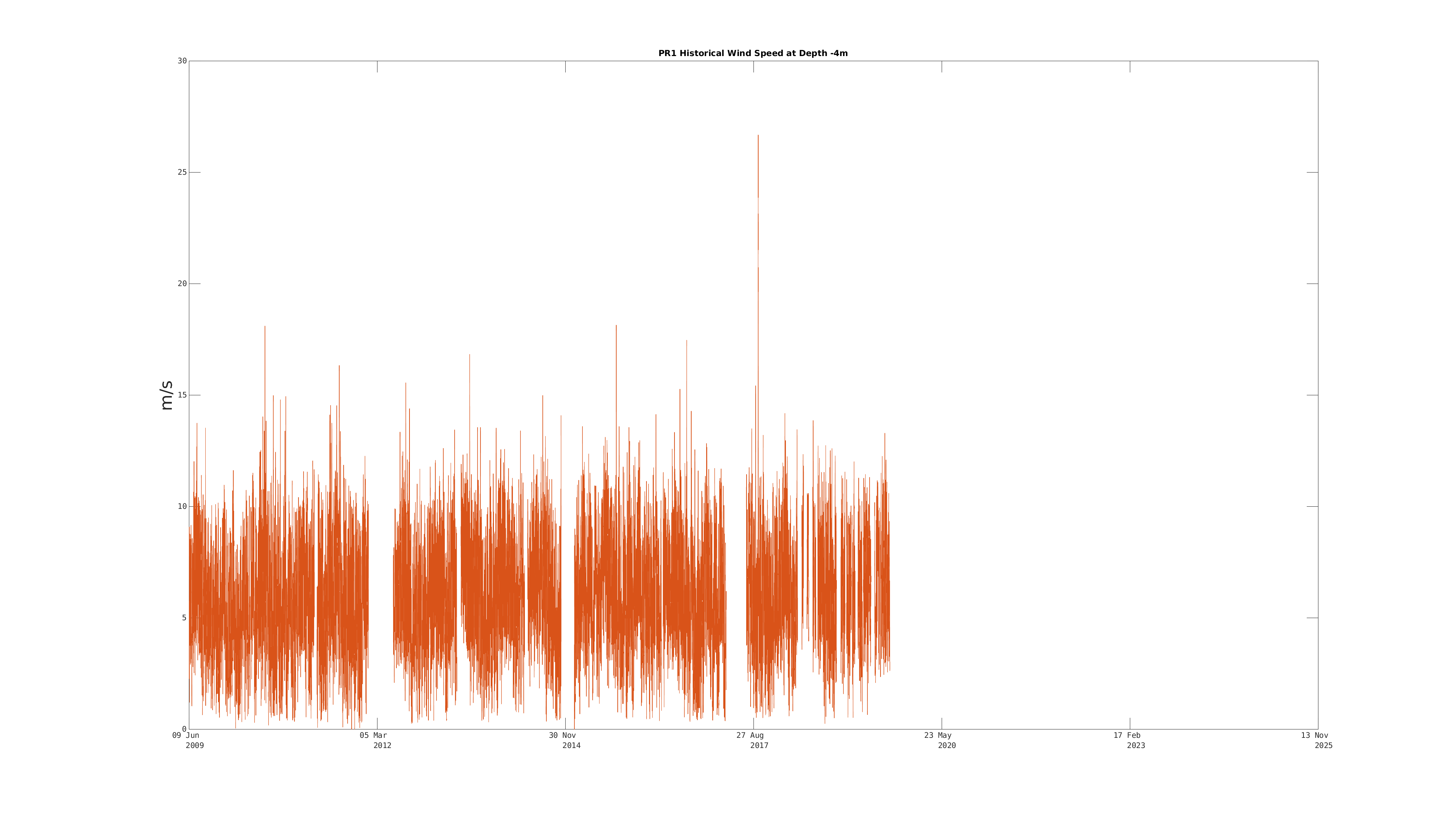

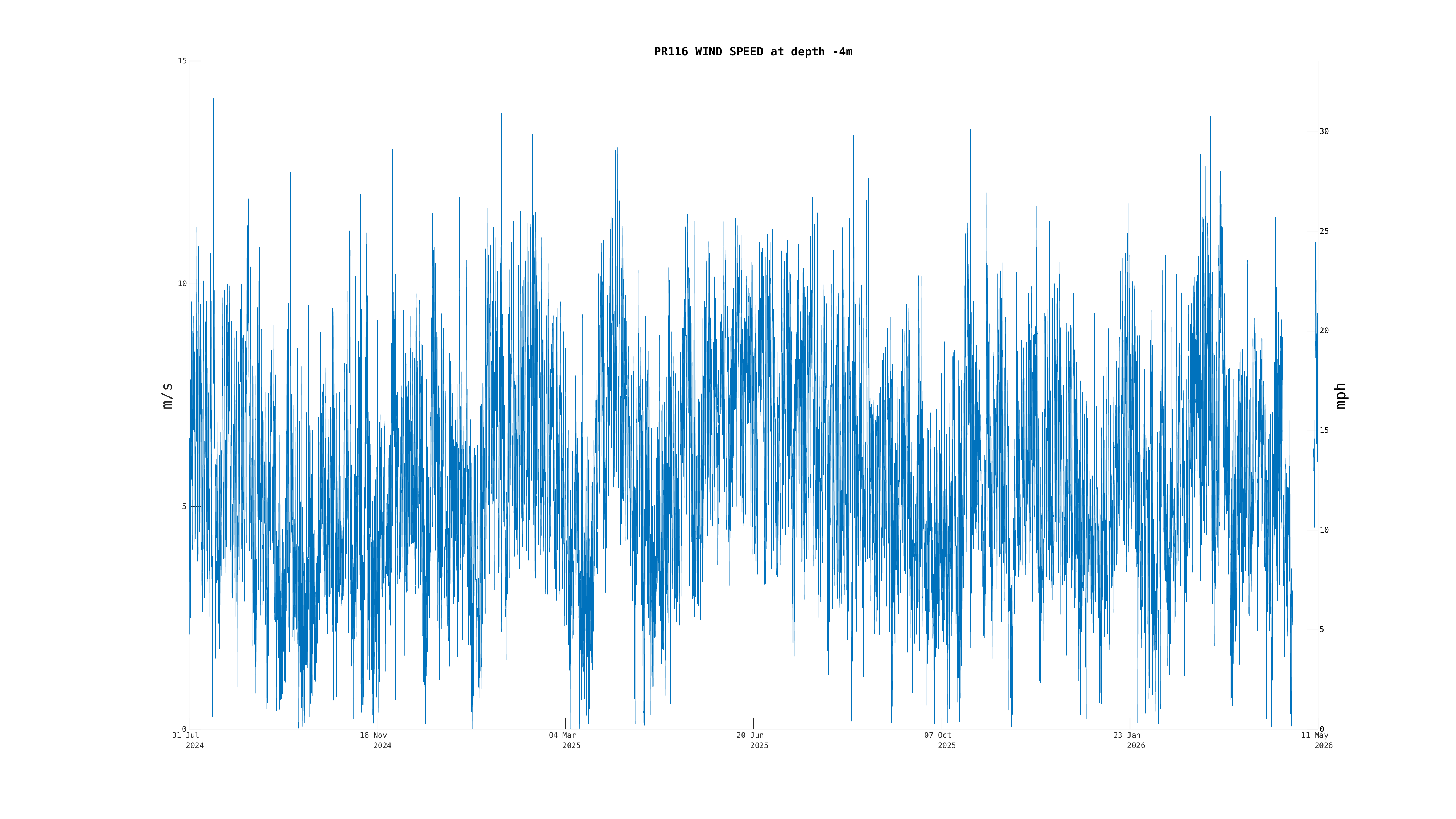

Wind Speed (-4m)7.6 m/s (17 mph, 15 kts) Feb 03 10:00 AM

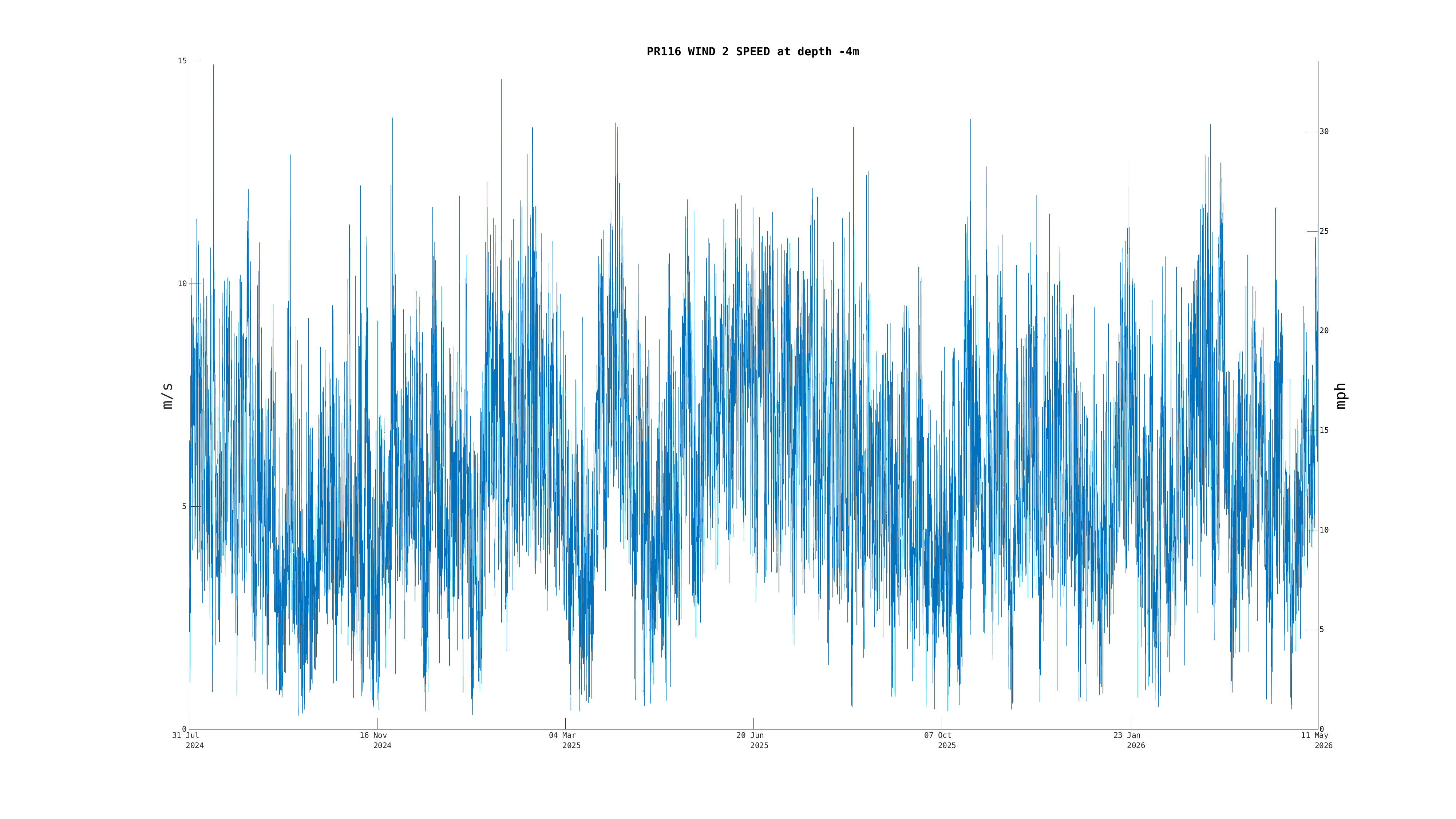

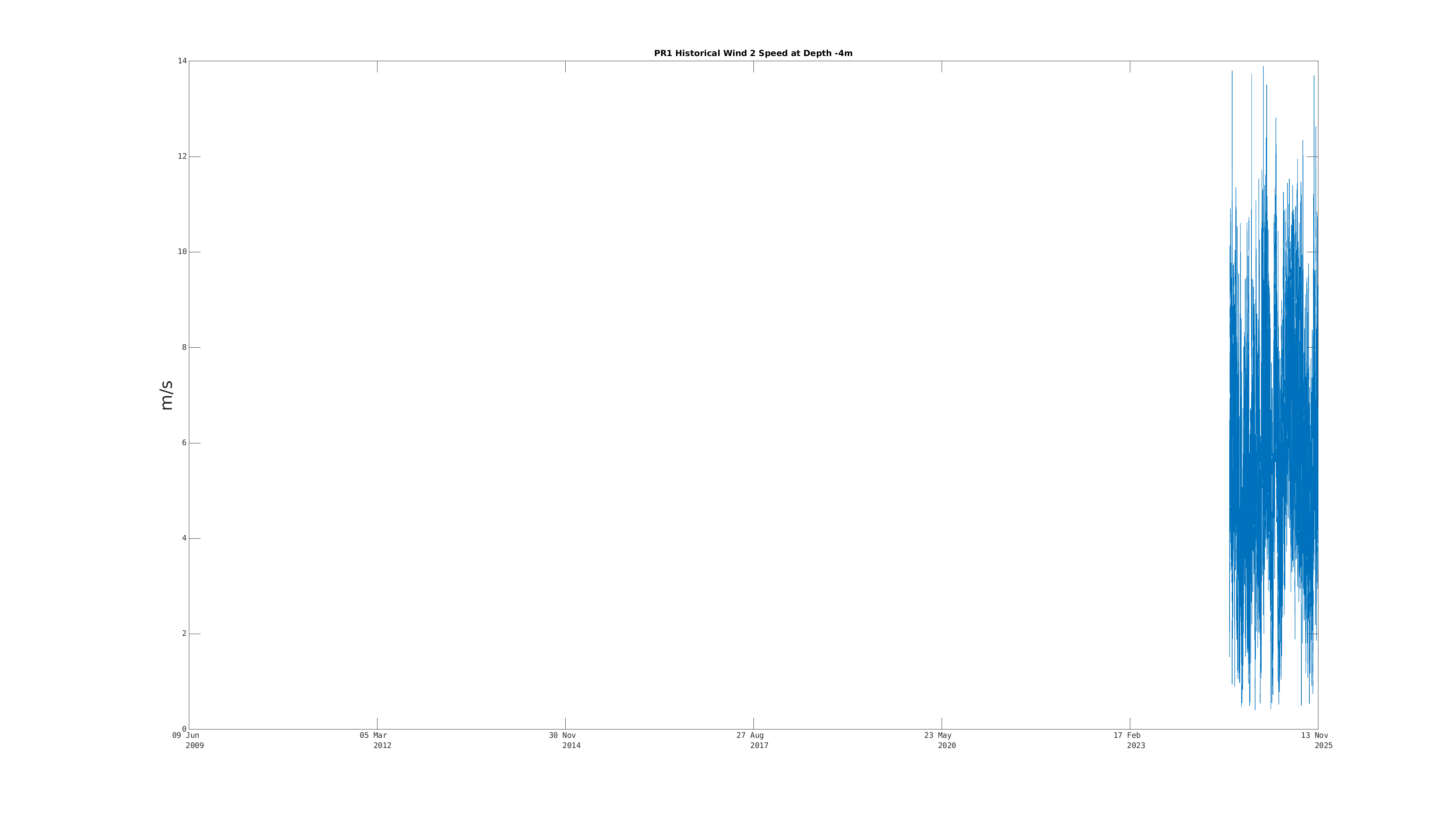

Wind 2 Speed [Primary] (-4m)7.4 m/s (16 mph, 14 kts) Feb 03 10:00 AM
Wind Gust (-4m)12.1 m/s (27 mph, 24 kts) Feb 03 10:00 AM

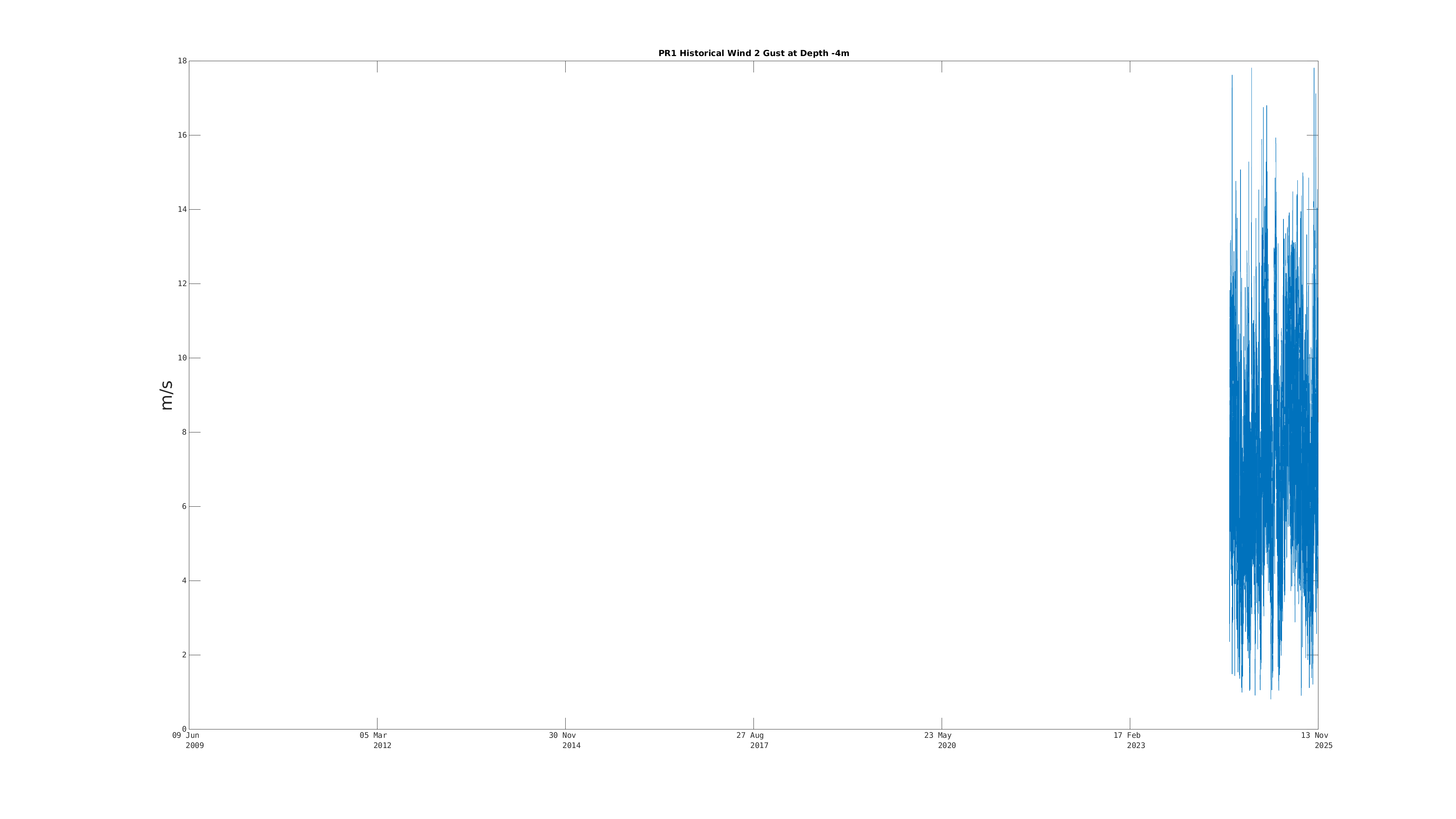

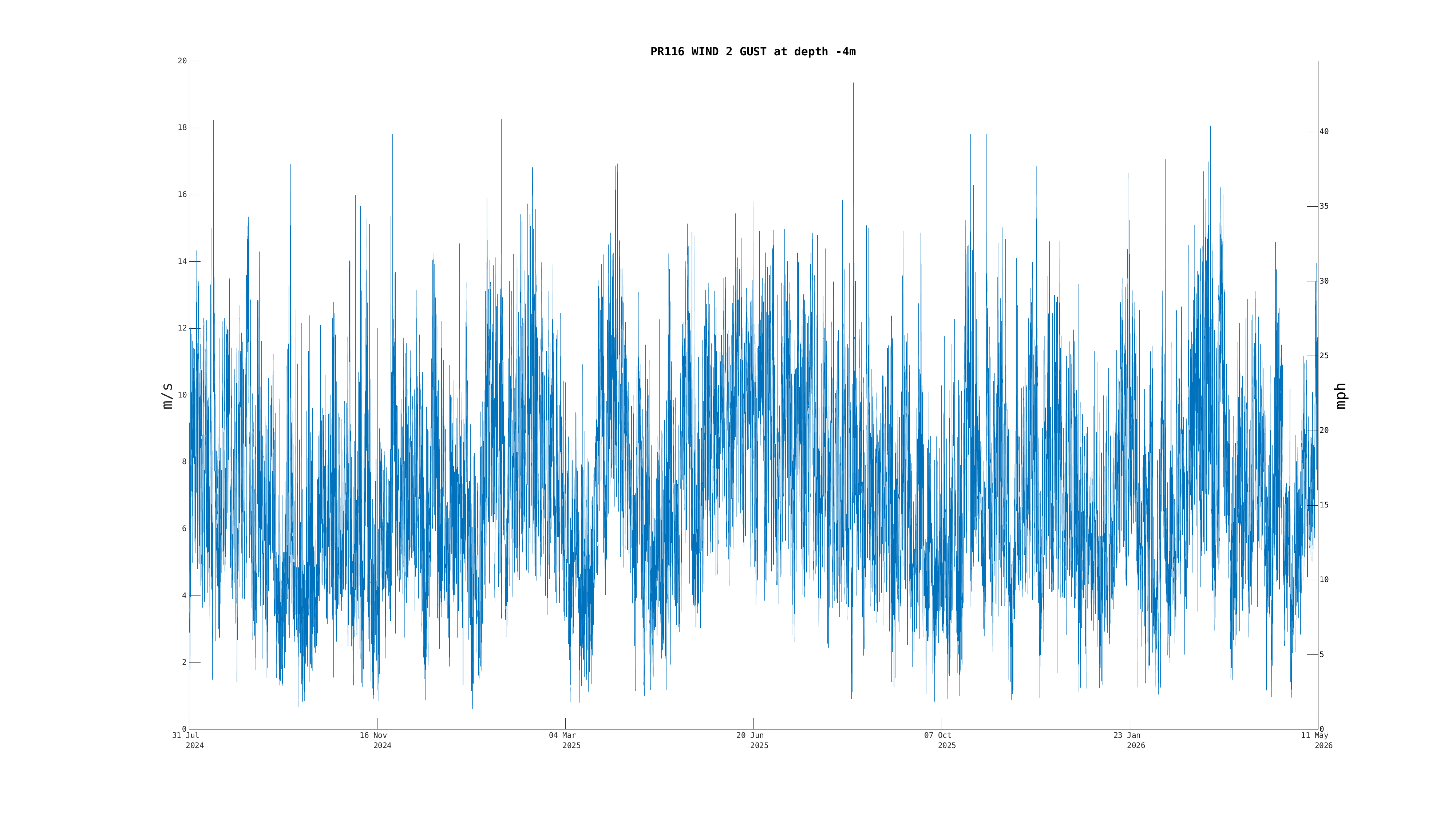

Wind 2 Gust [Primary] (-4m)9.7 m/s (22 mph, 19 kts) Feb 03 10:00 AM

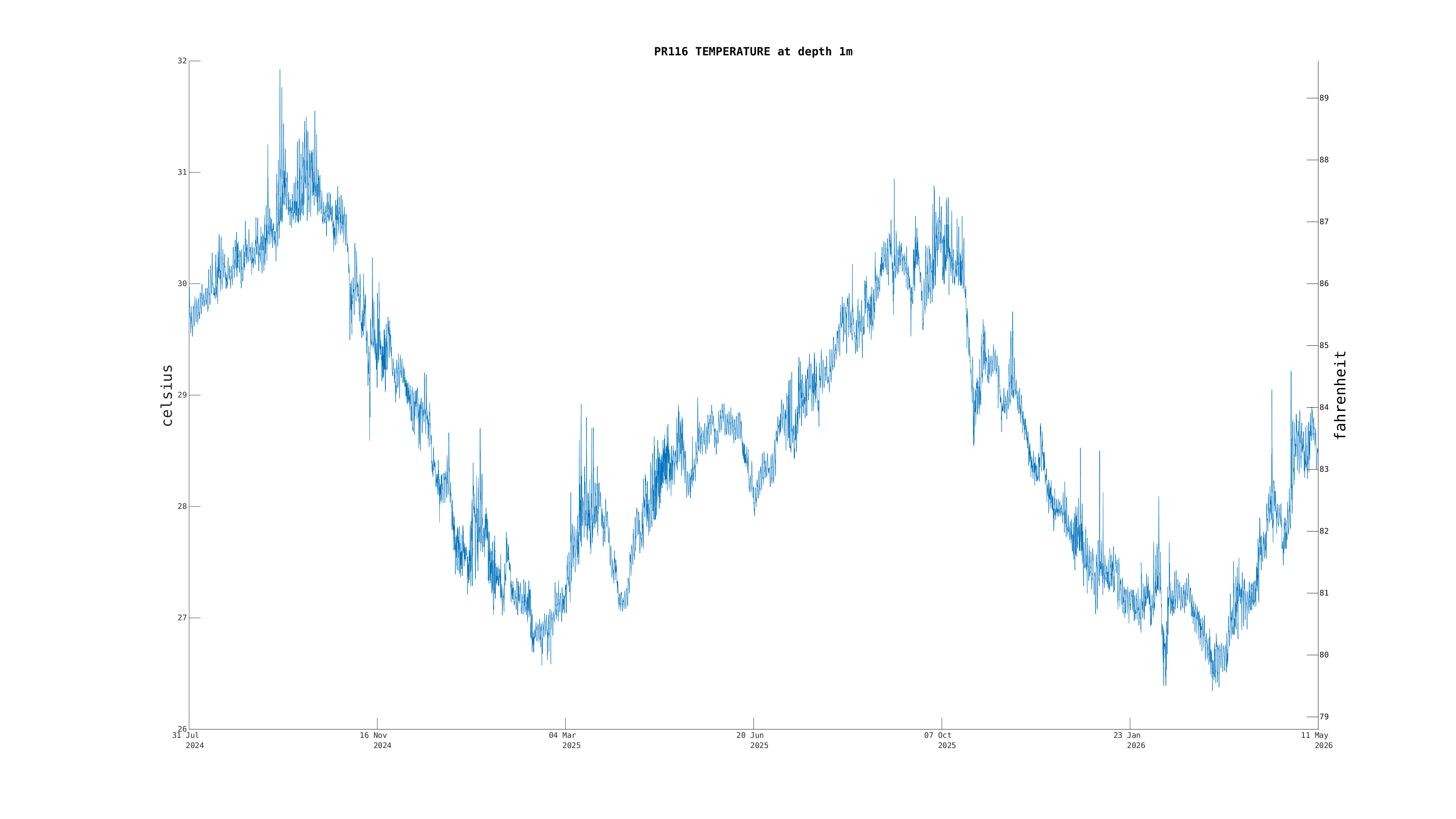

Water Temperature (1m)27.2 C (80.9 F) Feb 03 10:00 AM
Water Temperature (4m)Sensor Failure Feb 03 10:10 AM
Water Temperature (5m)Sensor Failure Feb 03 10:10 AM
Water Temperature (6m)Sensor Failure Feb 03 10:10 AM
Water Temperature (7m)Sensor Failure Feb 03 10:10 AM
Water Temperature (8m)Sensor Failure Feb 03 10:10 AM
Water Temperature (9m)Sensor Failure Feb 03 10:10 AM
Water Temperature (10m)Sensor Failure Feb 03 10:10 AM
Water Temperature (11m)Sensor Failure Feb 03 10:10 AM
Water Temperature (12m)Sensor Failure Feb 03 10:10 AM
Water Temperature (12m)30.0 C (86.0 F) Sep 18 7:00 AM

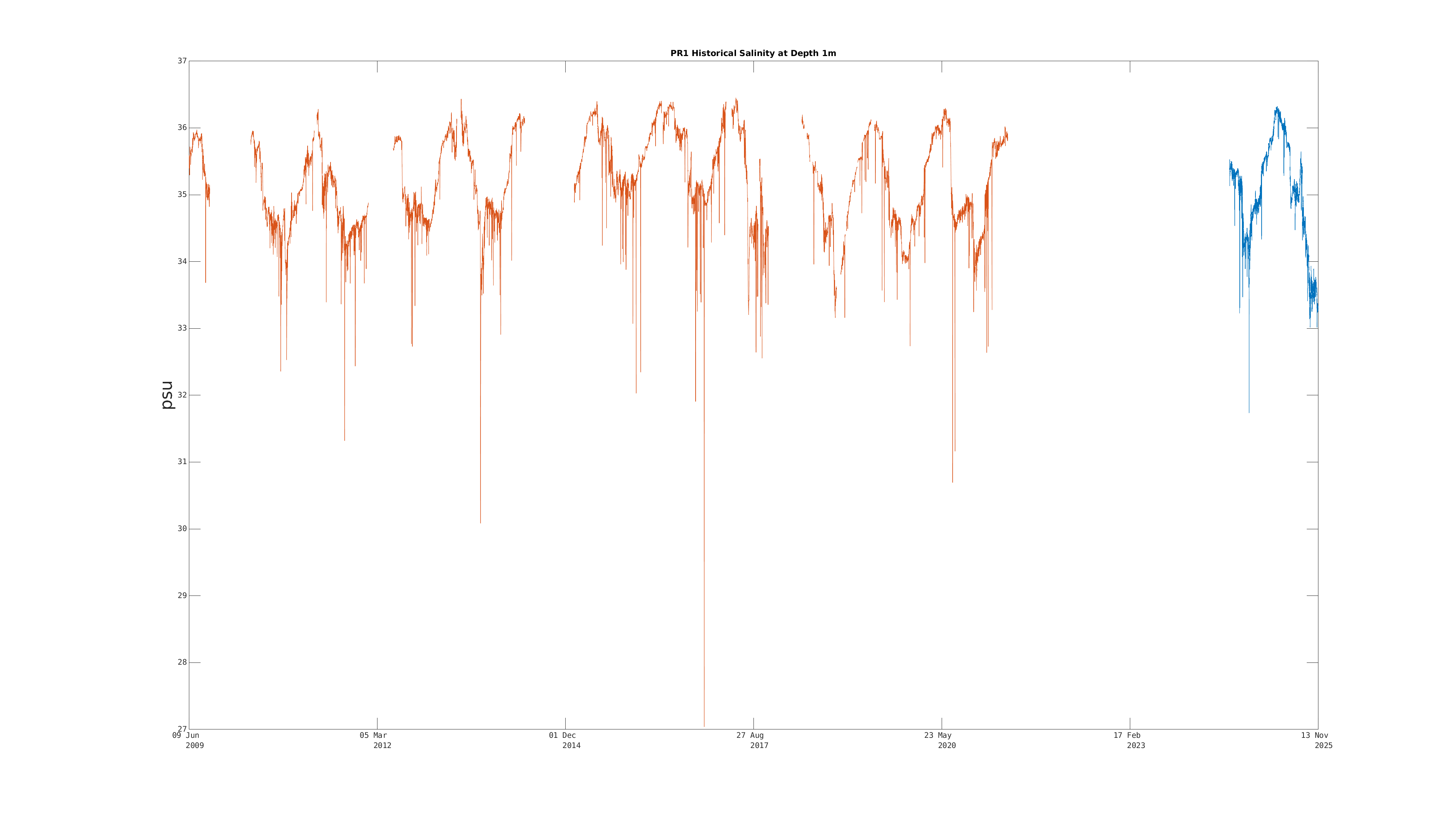

Salinity (1m)35.1 psu Feb 03 10:00 AM
Salinity (12m)32.3 psu Sep 18 7:00 AM
Pressure (12m)11.6 decibars Sep 18 7:00 AM
Dissolved Oxygen (12m)3.9 ml/l (5.6 mg/l) Sep 18 7:00 AM
Oxygen Saturation (12m)4.4 ml/l Sep 18 7:00 AM
Percent Oxygen Saturation (12m)88.0 % Sep 18 7:00 AM

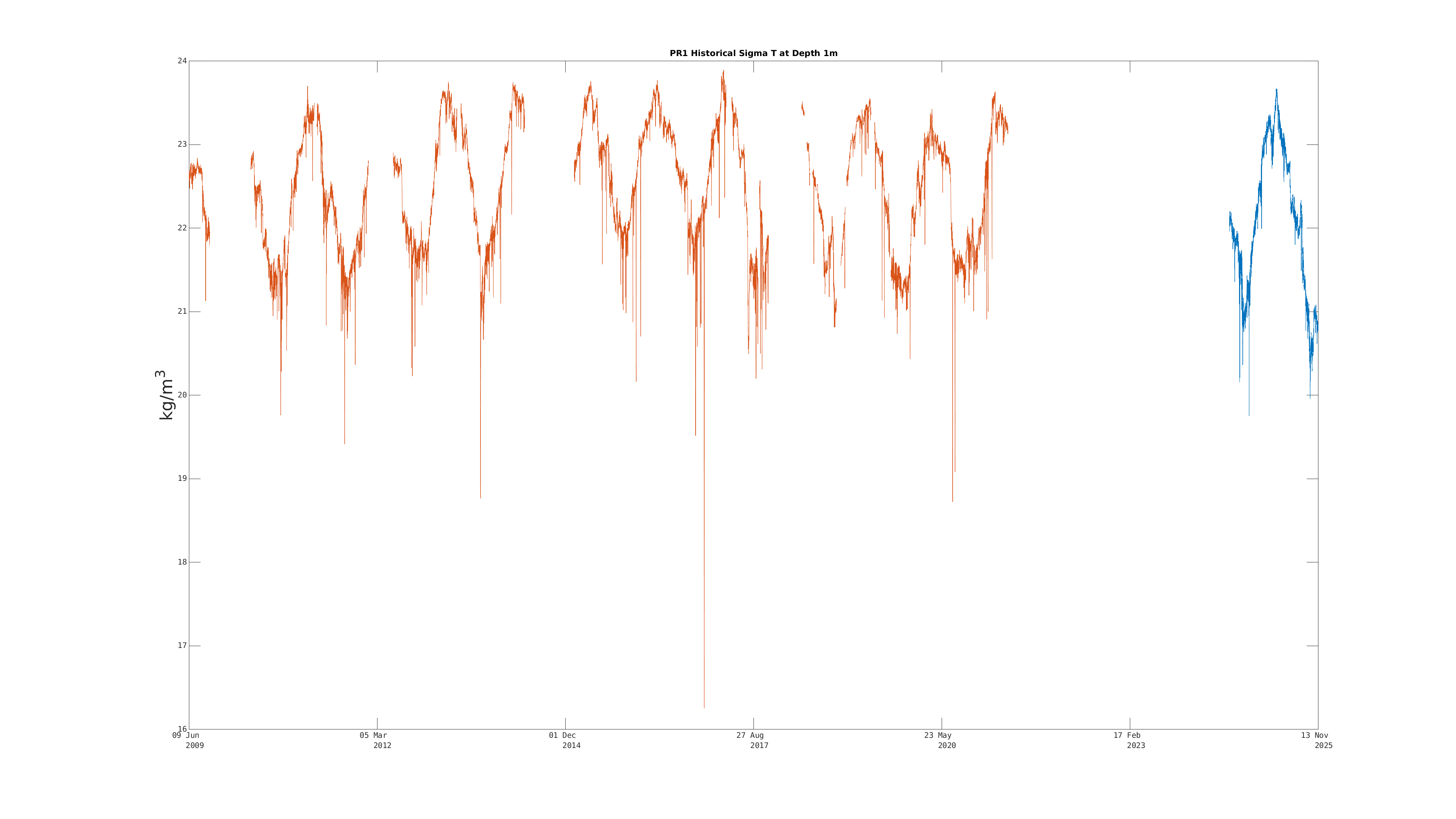

Sigma-T (1m)22.8 kg/m^3 Feb 03 10:00 AM
Sigma-T (12m)19.7 kg/m^3 Sep 18 7:00 AM
Current Direction (2.5m)SE Feb 03 10:00 AM
Current Direction (4m)SSE Feb 03 10:00 AM
Current Direction (5m)SSE Feb 03 10:00 AM
Current Direction (6m)SSE Feb 03 10:00 AM
Current Direction (7m)SSE Feb 03 10:00 AM
Current Direction (8m)South Feb 03 10:00 AM
Current Direction (9m)South Feb 03 10:00 AM
Current Direction (10m)SSE Feb 03 10:00 AM
Current Direction (11m)SSE Feb 03 10:00 AM
Current Direction (12m)South Feb 03 10:00 AM
Current Direction (13m)SSE Feb 03 10:00 AM
Current Direction (14m)SSE Feb 03 10:00 AM
Current Direction (15m)SSE Feb 03 10:00 AM
Current Direction (16m)Sensor Failure Feb 03 10:00 AM
Current Speed (2.5m)26.7 cm/s (0.52 kts) Feb 03 10:00 AM
Current Speed (4m)29.0 cm/s (0.56 kts) Feb 03 10:00 AM
Current Speed (5m)27.2 cm/s (0.53 kts) Feb 03 10:00 AM
Current Speed (6m)28.1 cm/s (0.55 kts) Feb 03 10:00 AM
Current Speed (7m)31.7 cm/s (0.62 kts) Feb 03 10:00 AM
Current Speed (8m)41.6 cm/s (0.81 kts) Feb 03 10:00 AM
Current Speed (9m)38.8 cm/s (0.75 kts) Feb 03 10:00 AM
Current Speed (10m)46.2 cm/s (0.90 kts) Feb 03 10:00 AM
Current Speed (11m)44.1 cm/s (0.86 kts) Feb 03 10:00 AM
Current Speed (12m)46.9 cm/s (0.91 kts) Feb 03 10:00 AM
Current Speed (13m)48.8 cm/s (0.95 kts) Feb 03 10:00 AM
Current Speed (14m)54.1 cm/s (1.05 kts) Feb 03 10:00 AM
Current Speed (15m)54.3 cm/s (1.06 kts) Feb 03 10:00 AM
Current Speed (16m)Sensor Failure Feb 03 10:00 AM

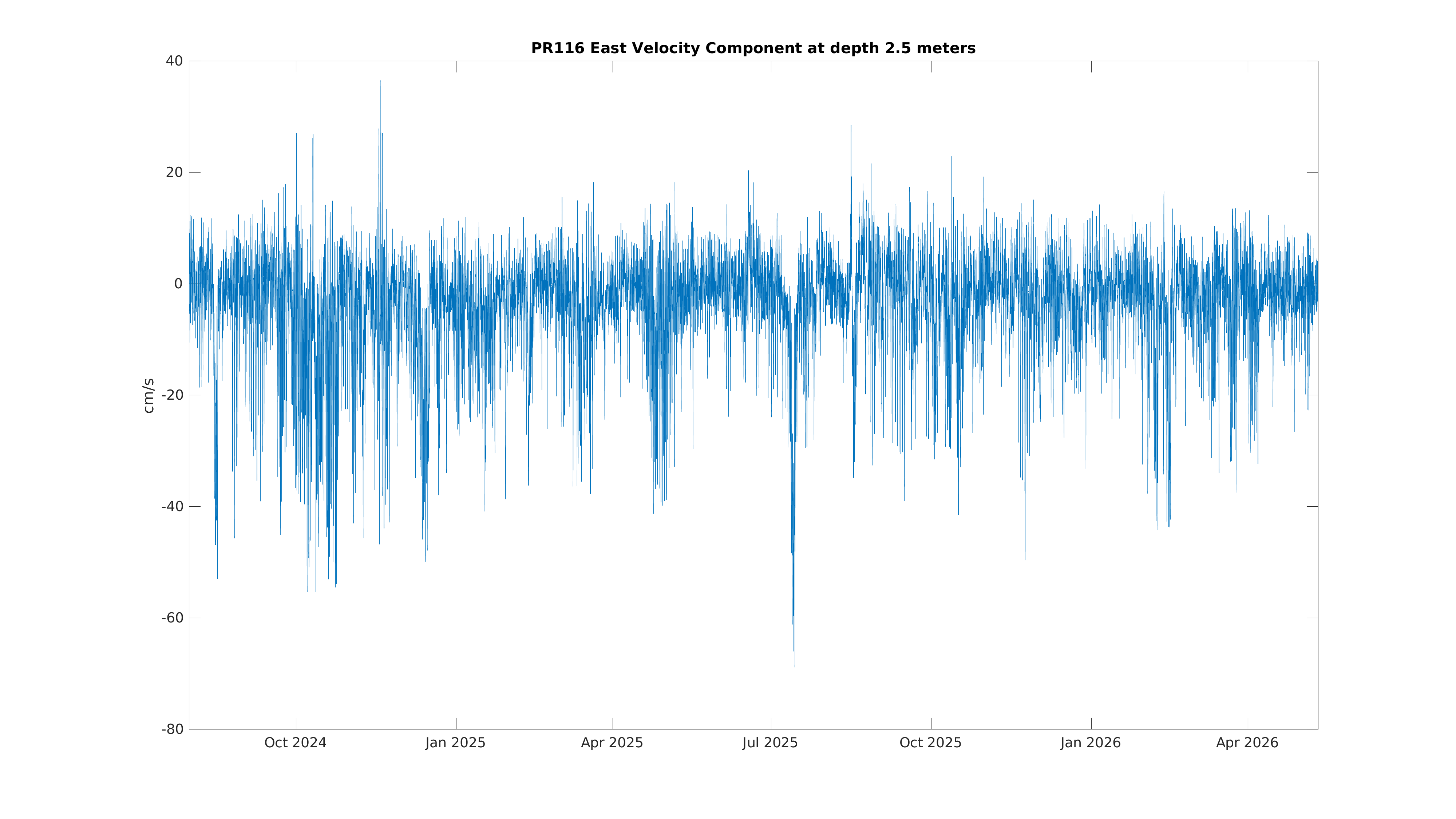

East Current Velocity (2.5m)16.4 cm/s (0.32 kts) Feb 03 10:00 AM
East Current Velocity (4m)12.8 cm/s (0.25 kts) Feb 03 10:00 AM
East Current Velocity (5m)6.9 cm/s (0.13 kts) Feb 03 10:00 AM

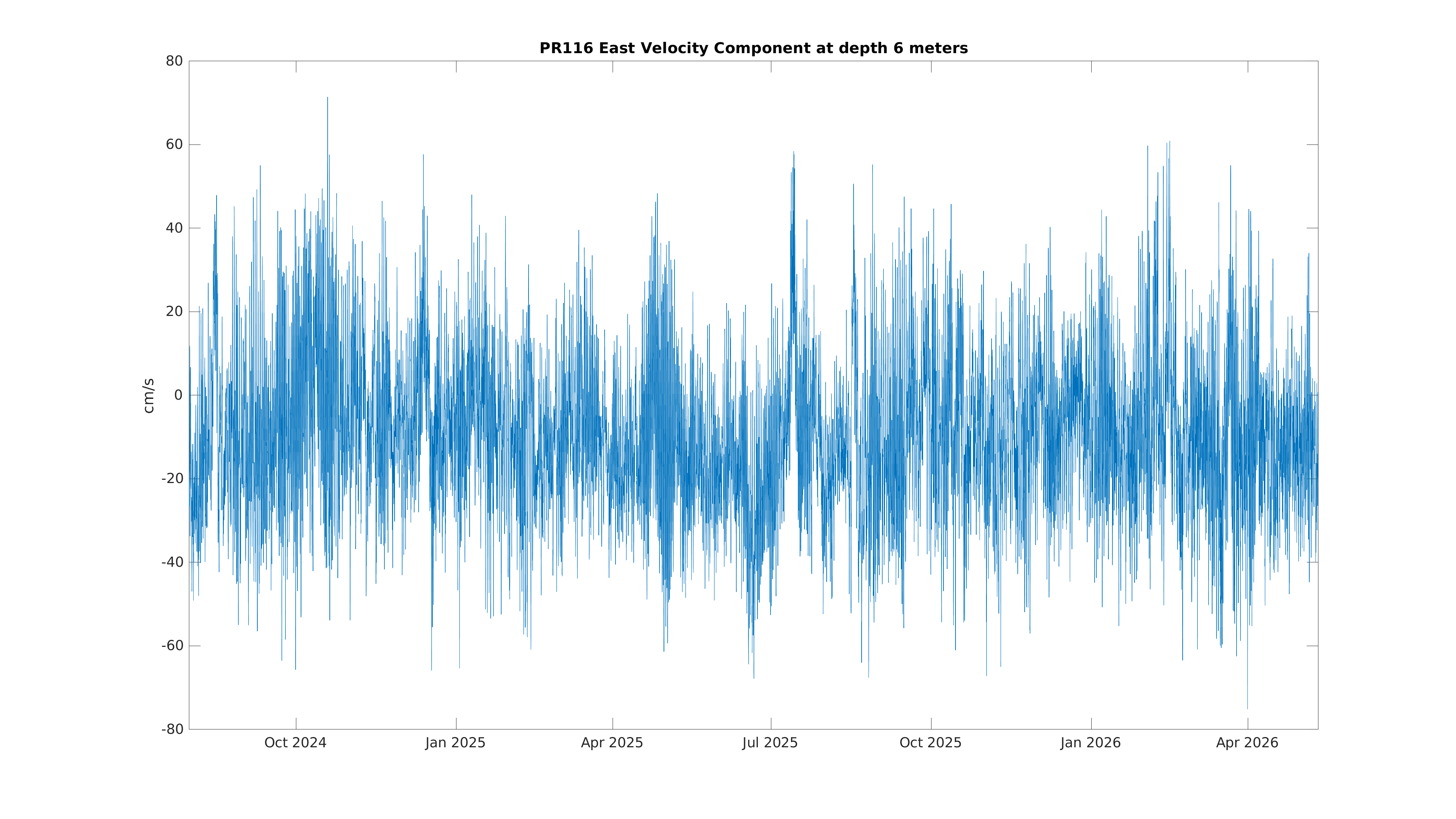

East Current Velocity (6m)7.8 cm/s (0.15 kts) Feb 03 10:00 AM
East Current Velocity (7m)7.0 cm/s (0.14 kts) Feb 03 10:00 AM
East Current Velocity (8m)2.1 cm/s (0.04 kts) Feb 03 10:00 AM

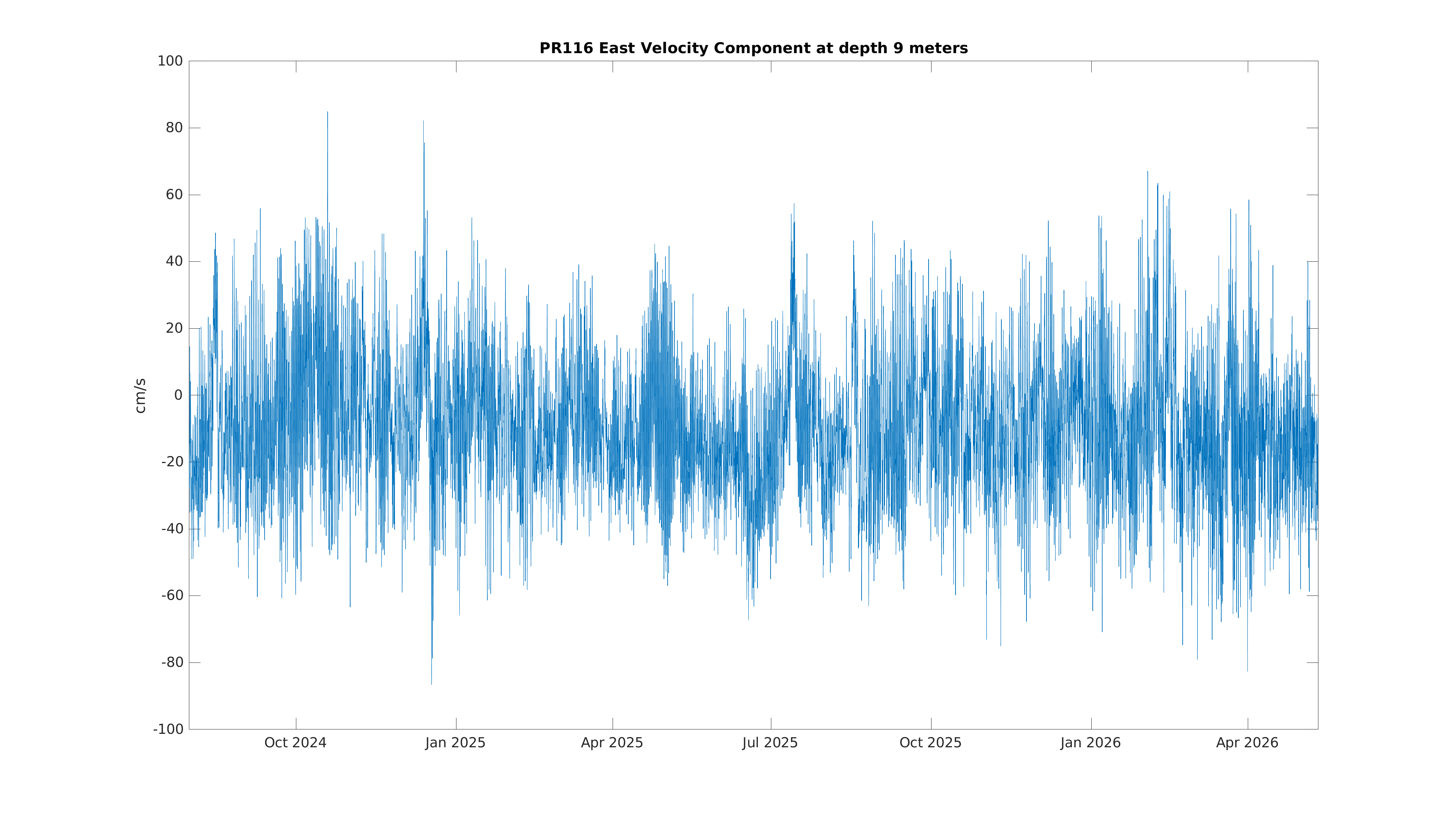

East Current Velocity (9m)3.7 cm/s (0.07 kts) Feb 03 10:00 AM

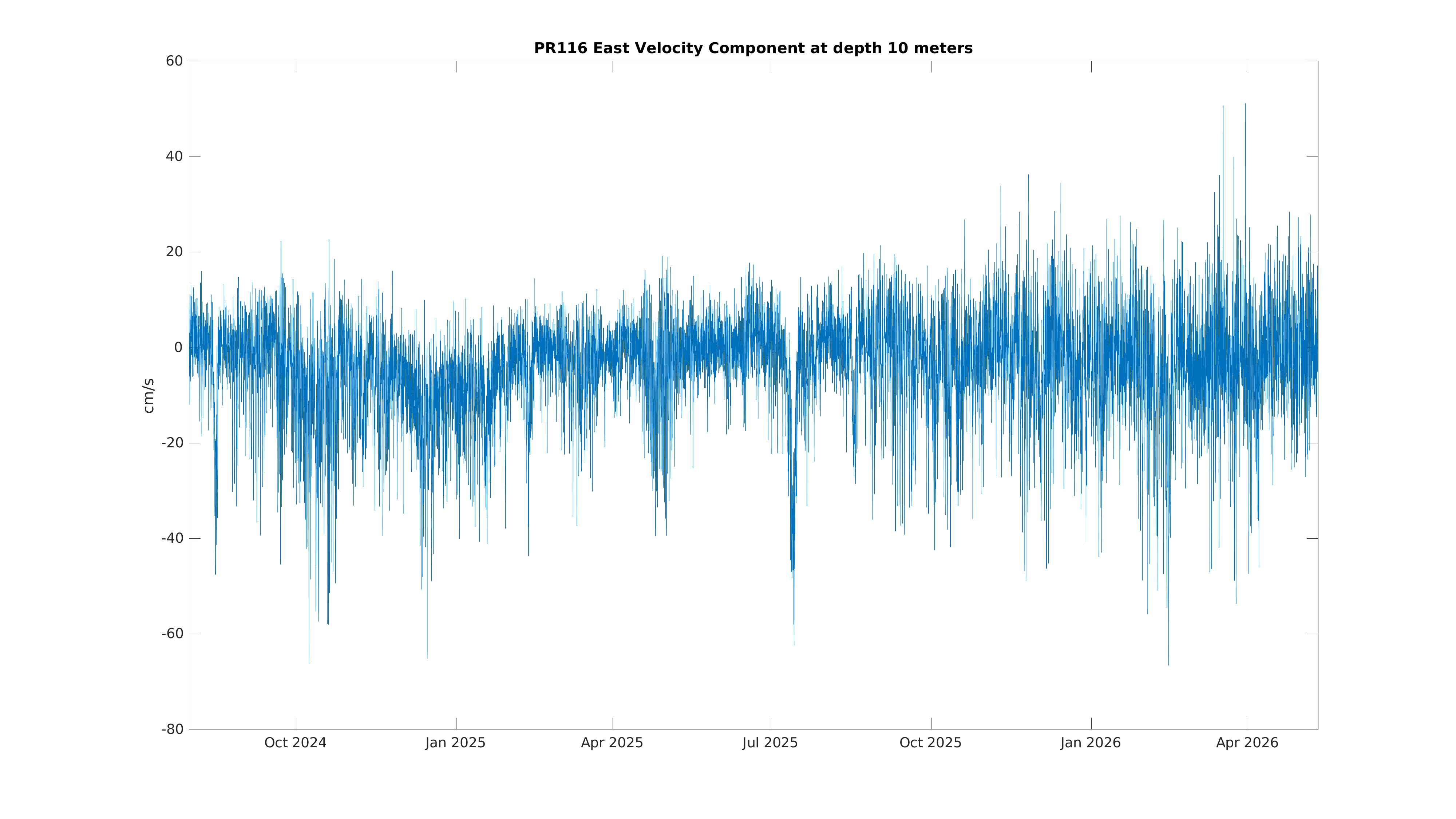

East Current Velocity (10m)9.2 cm/s (0.18 kts) Feb 03 10:00 AM
East Current Velocity (11m)12.2 cm/s (0.24 kts) Feb 03 10:00 AM
East Current Velocity (12m)9.1 cm/s (0.18 kts) Feb 03 10:00 AM
East Current Velocity (13m)11.3 cm/s (0.22 kts) Feb 03 10:00 AM

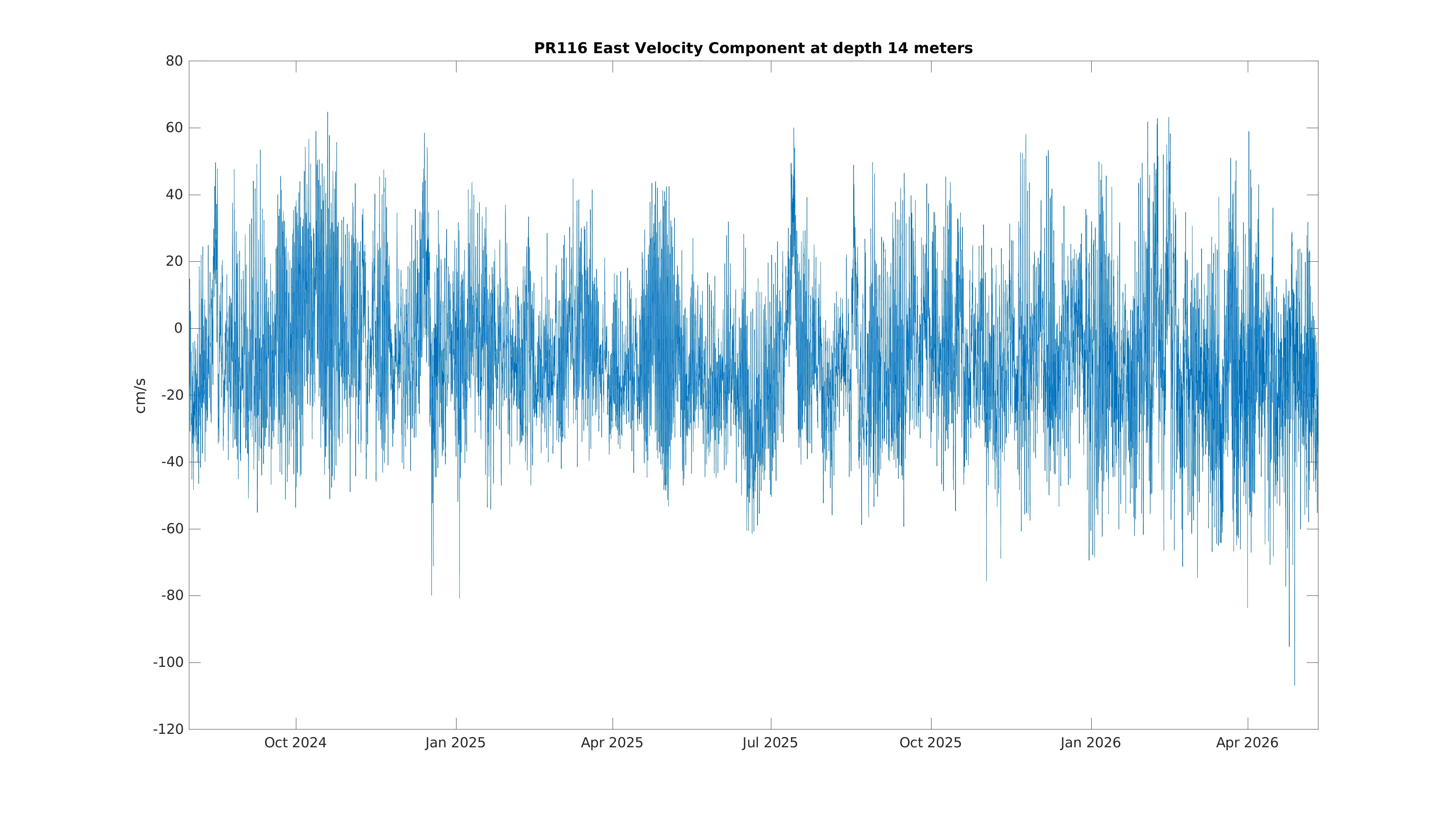

East Current Velocity (14m)18.0 cm/s (0.35 kts) Feb 03 10:00 AM

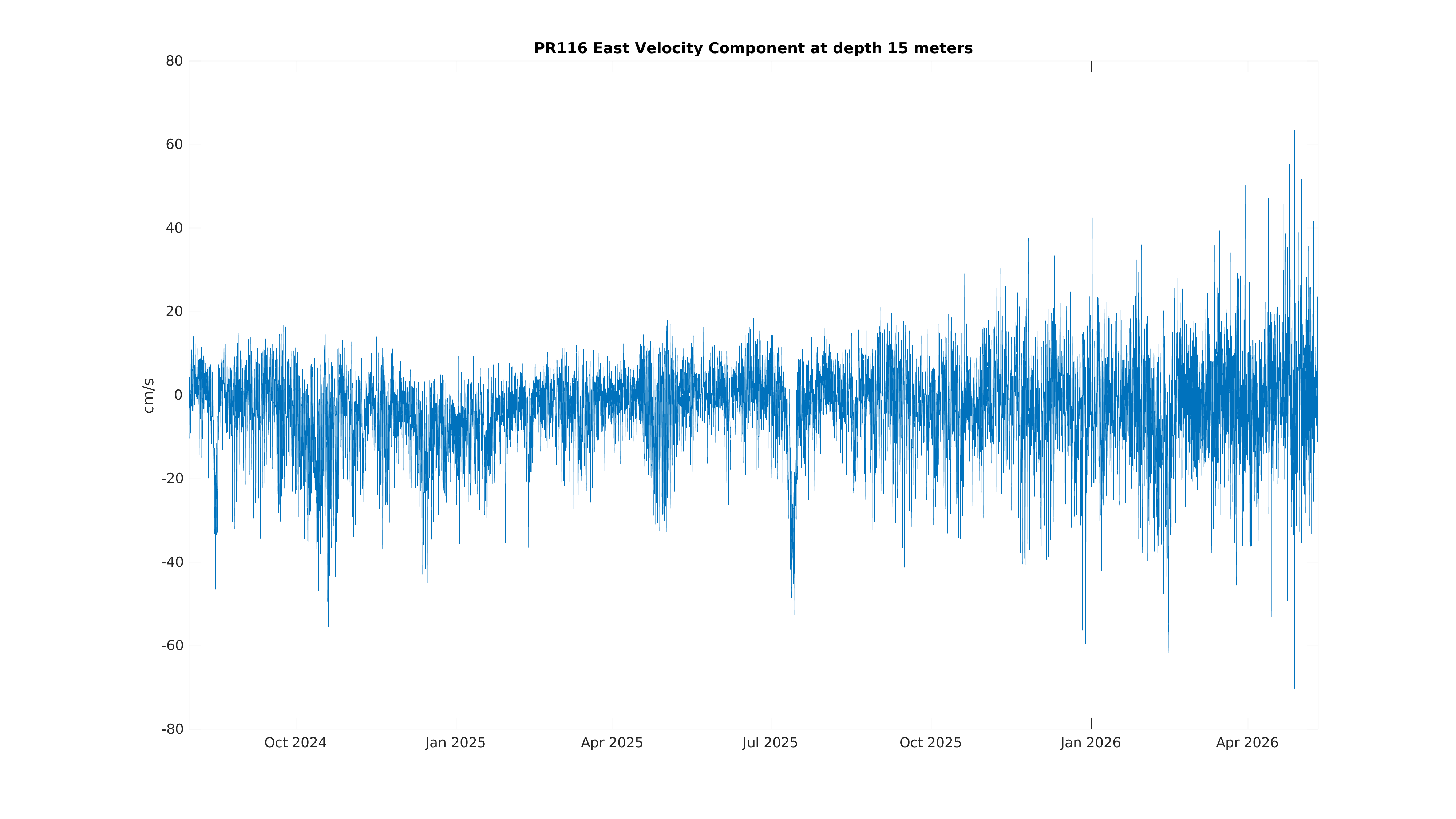

East Current Velocity (15m)21.1 cm/s (0.41 kts) Feb 03 10:00 AM
East Current Velocity (16m)Sensor Failure Feb 03 10:00 AM
North Current Velocity (2.5m)-21.1 cm/s (-0.41 kts) Feb 03 10:00 AM
North Current Velocity (4m)-26.0 cm/s (-0.51 kts) Feb 03 10:00 AM
North Current Velocity (5m)-26.3 cm/s (-0.51 kts) Feb 03 10:00 AM
North Current Velocity (6m)-27.0 cm/s (-0.52 kts) Feb 03 10:00 AM
North Current Velocity (7m)-30.9 cm/s (-0.60 kts) Feb 03 10:00 AM
North Current Velocity (8m)-41.5 cm/s (-0.81 kts) Feb 03 10:00 AM
North Current Velocity (9m)-38.6 cm/s (-0.75 kts) Feb 03 10:00 AM
North Current Velocity (10m)-45.3 cm/s (-0.88 kts) Feb 03 10:00 AM
North Current Velocity (11m)-42.4 cm/s (-0.82 kts) Feb 03 10:00 AM
North Current Velocity (12m)-46.0 cm/s (-0.89 kts) Feb 03 10:00 AM
North Current Velocity (13m)-47.5 cm/s (-0.92 kts) Feb 03 10:00 AM
North Current Velocity (14m)-51.0 cm/s (-0.99 kts) Feb 03 10:00 AM
North Current Velocity (15m)-50.0 cm/s (-0.97 kts) Feb 03 10:00 AM
North Current Velocity (16m)Sensor Failure Feb 03 10:00 AM

Measured Ocean Currents and Wind Stress

Hourly averaged wind stress at 4 m and currents (rotated to true north) at 2 m (current meter) and from 10 m to a maximum of 126 m (Doppler).
Latest Month's:
This Deployment:
Entire Position History:

How to Read a Stick Plot

Wind and Residual Ocean Currents

Measured winds and currents which are low-pass filtered to remove tidal currents. Winds at 4 m above sea surface, surface currents at a depth of 2 m, and doppler currents at 4 meter bins from 10 meters to a maximum of 126 meters.
Latest Month's:
This Deployment:
Entire Position History:

How to Read a Stick Plot
